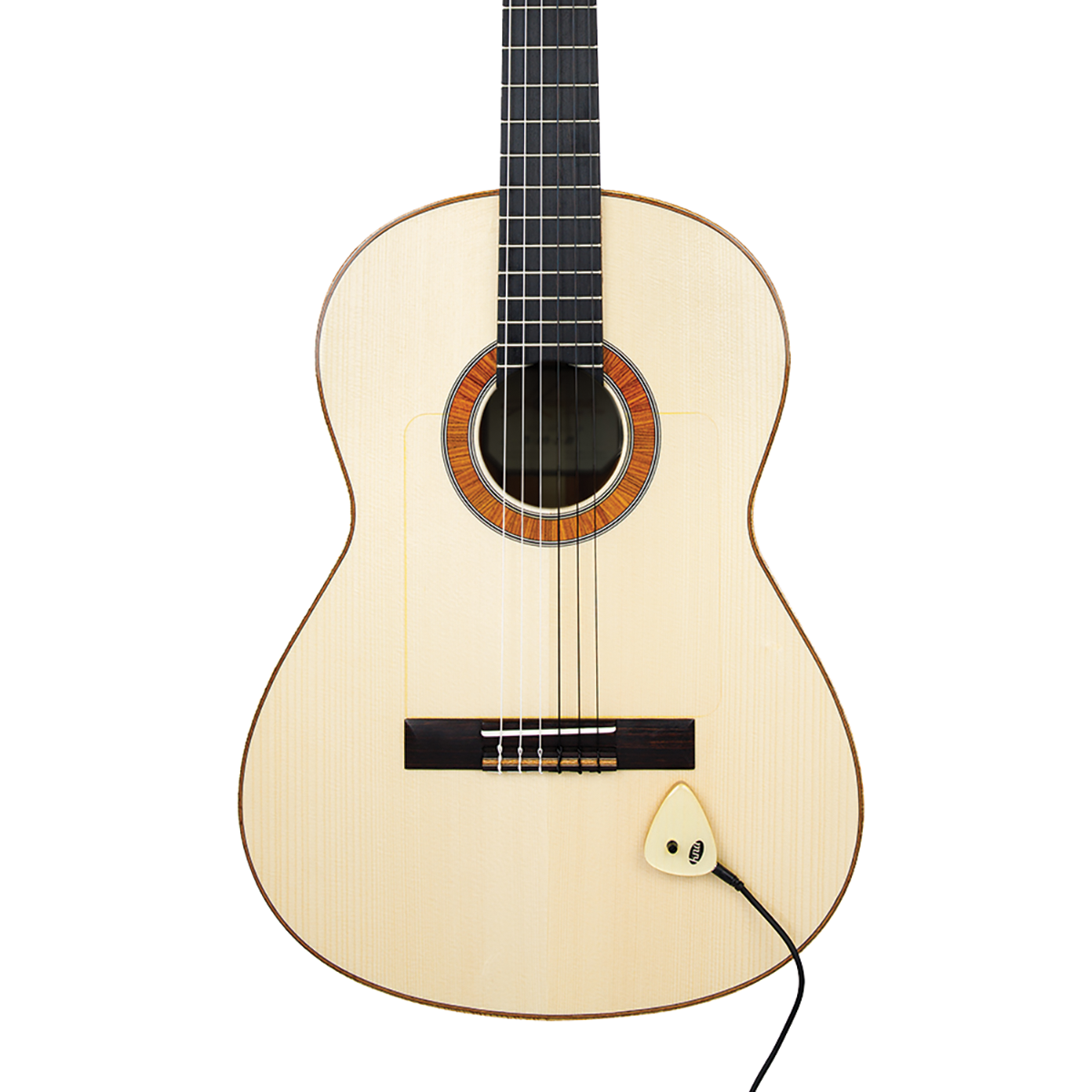

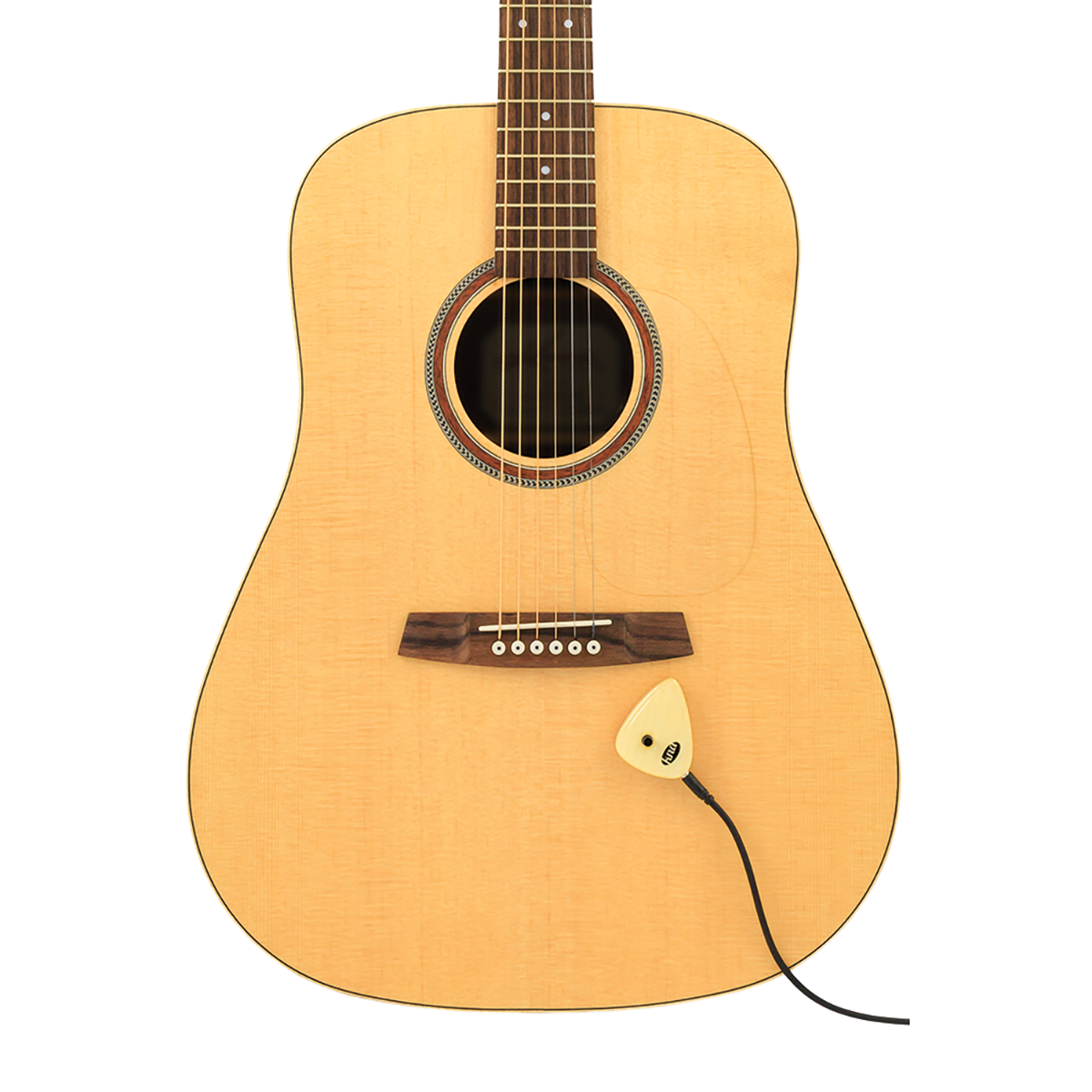

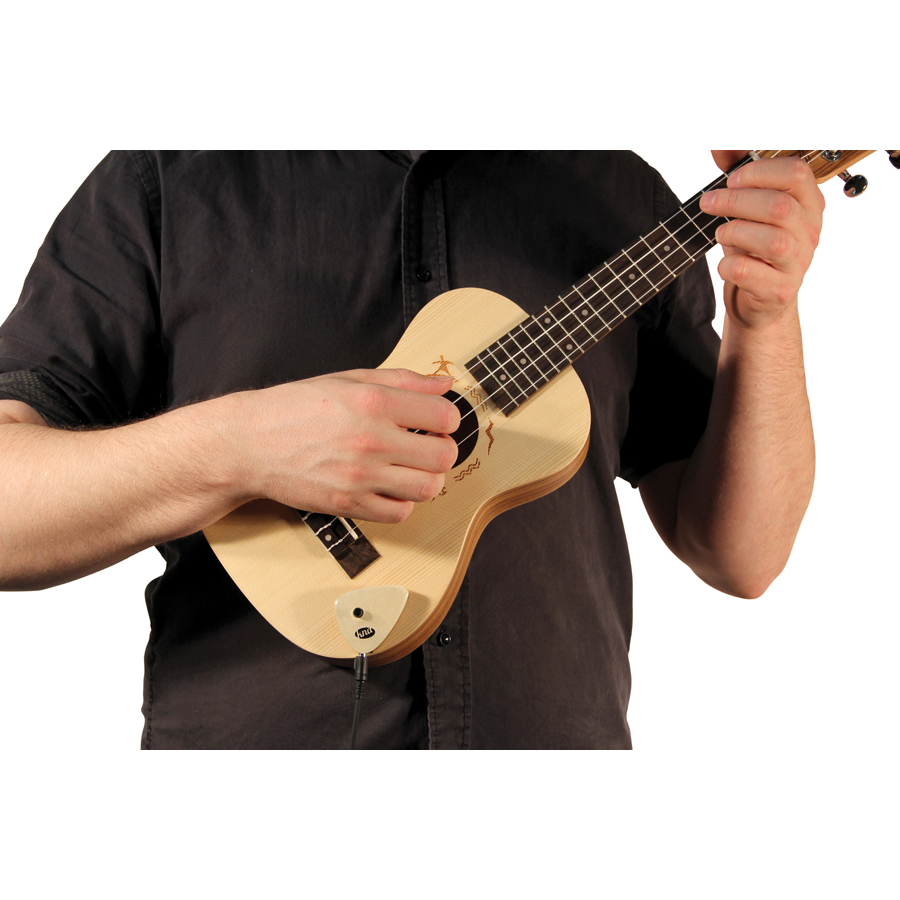

Portable surface-mounted piezo with volume control for variety of acoustic instruments

AP-2 is an ideal stick-on guitar pickup for acoustic musicians looking for an easy, effective solution to bring their sound to an amp and control volume from the stage.

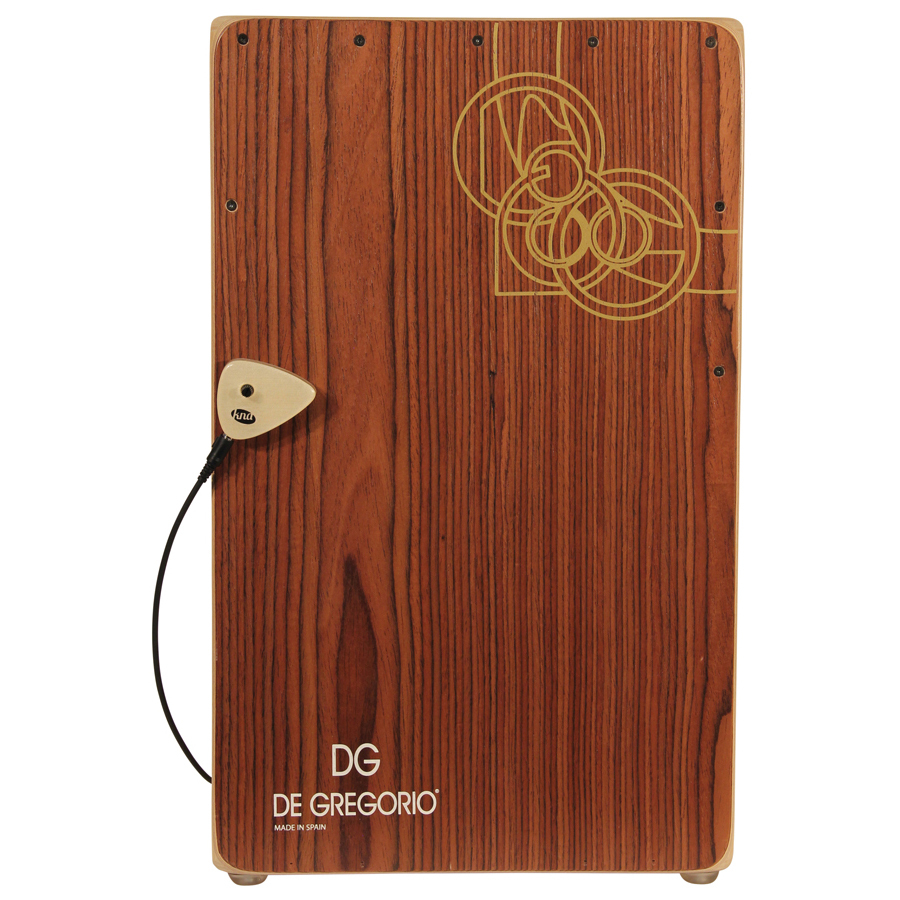

In addition to being a surface-mount guitar pickup, AP-2 can be used for harp, drums, and percussion.

Features:

Install with no modification

Simply stick the pickup on your instrument’s soundboard.

Onboard volume control

Players can control their output signal while onstage or in the studio, right from the pickup-mounted volume knob.

Wooden housing

The piezo element is encased in laminated birch with an elegant and stylish maple top while retaining lightweight assembly to achieve maximum tonal sensitivity.

Passive design

AP-2 has a passive design that reproduces the natural sound of the instrument with no need for a battery.

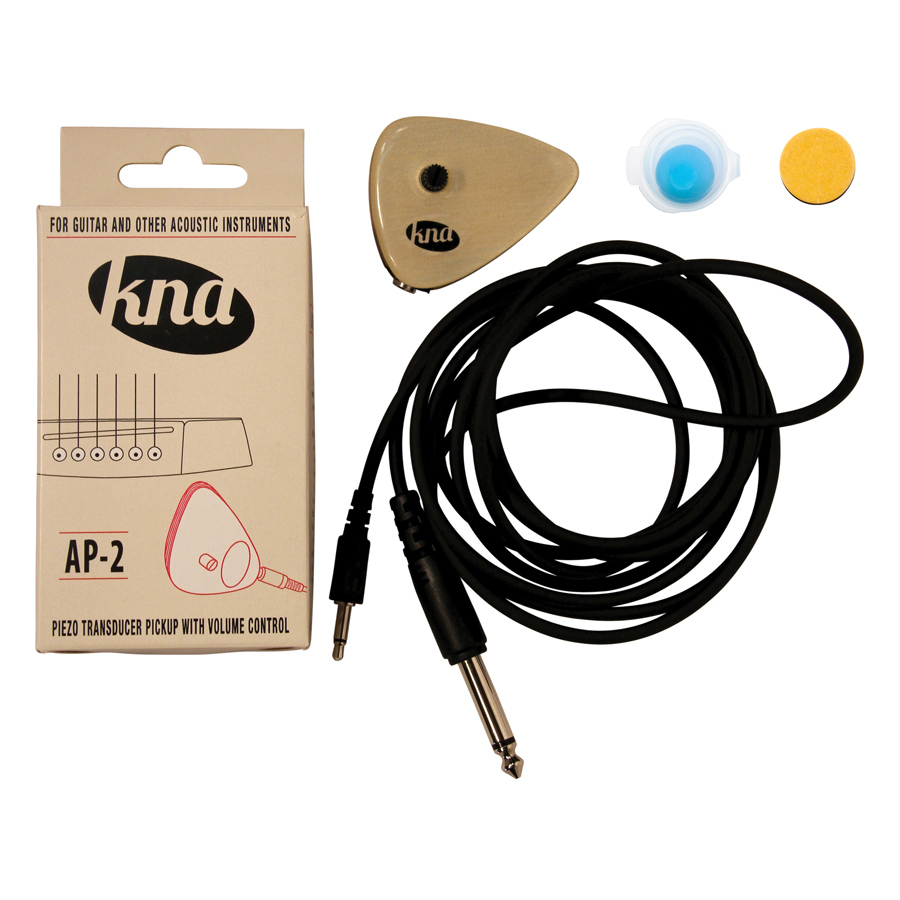

Complete installation set

The pickup comes with a double-sided adhesive disc and enough PowerTack adhesive for multiple applications, and a detachable 1/8" to 1/4" cable that allows the pickup to remain in place during storage.

DOWNLOAD INSTALLATION INSTRUCTIONS HERE

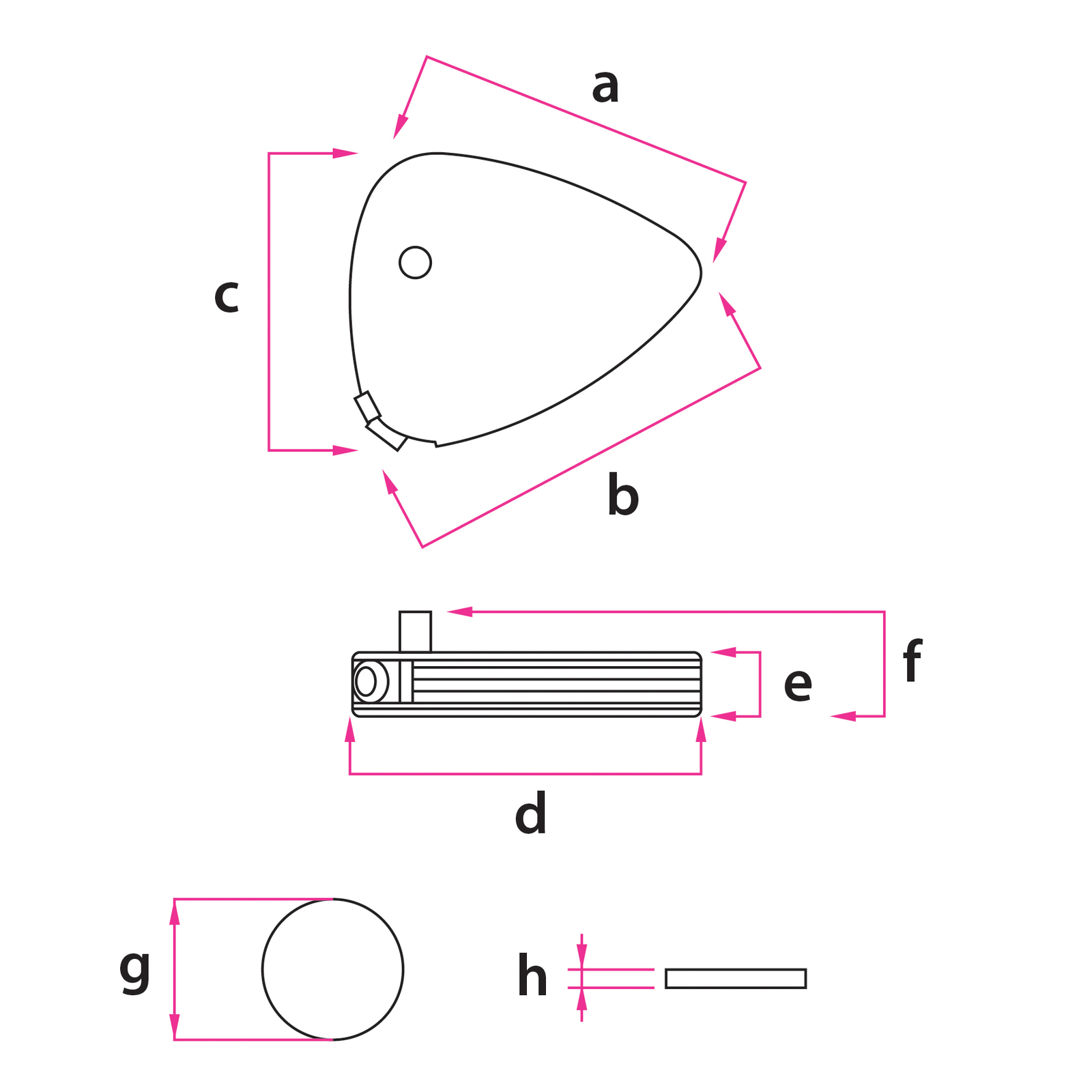

specifications
Weight 12.80g / 0.45oz
Body size irregular form
53,70mm / 2.11"
B 42,80mm / 1.68
Height 9.5mm / 0.37"
Body materials Laminated birch and maple top
Potentiometer  500 kilo ohms
Maximum Impedance 200 ‰ã_
Cable 2.5meter / 8'

1 YEAR LIMITED WARRANTY

SKU KNAAP2
Barcode # 617353858426
Brand KNA Pickups
Shipping Weight 0.0950kg
Shipping Width 0.035m
Shipping Height 0.103m
Shipping Length 0.065m
