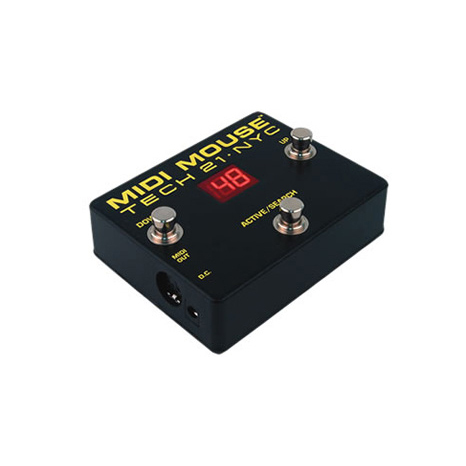

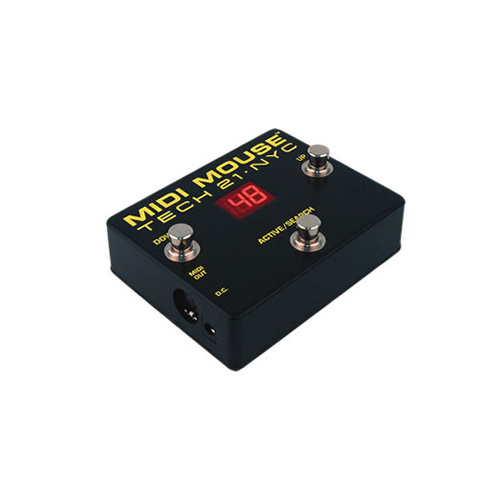

The MIDI Mouse is designed to take the frustration and confusion out of MIDI and offer an exceptionally user-friendly footcontroller. Easily access 128 patches on any of the 16 selectable MIDI channels by using the Up and Down footswitches to locate your program, with no banks to select. A third footswitch toggles between Search mode to locate programs and Active mode to send the program number to the MIDI output.

There are a few more details in what is probably the world's smallest owner's manual for a MIDI product, but the main points to consider are:

SMALL – Fits into any gig bag. Needs no special carrying case. Takes up very little space on stage. Easily sits on a console in a studio, so you can make remote program changes from the board with your finger.

BATTERY OPERABLE – It’s the only MIDI foot controller available that’s battery operable. Needs no extra wires. Takes no time to set up; just plug in and go.

SIMPLE – It’s player-friendly in a familiar stomp box format. Most foot controllers are harder to program than the processors they’re designed to control.

HEAVY DUTY – Sturdy, cast aluminum box; high quality switches.

NO DANCING – There are no banks to change. You scroll to program locations, either one at a time, or you can “speed-scroll”. To go from Program 19 to Program 20, step on the UP footswitch. Once. From Program 20 to Program 19, step on the DOWN footswitch. Once.

IMPROVISATION – Its size and affordability makes it uniquely practical to have two, so you can control two processors independently on the fly.

ADDITIONAL FEATURES

• In a recording studio, the MIDI Mouse can easily sit on a console.

• The smooth-action custom actuators give you fingertip control for instant remote program changes.

• On stage and in the studio, the large, non-glare LED display can be read from any angle, in daylight or darkness.

• Phantom power operable via MIDI cable, or utilizes optional DC power supply, Tech 21 Model #DC4-A, or 9V alkaline battery (not included)

• Actual size: 4.75″ x 3.75″ x 2.0″

• Weight: 11 oz.

Owner's Manual

2 YEAR LIMITED WARRANTY

SKU MIDI
Barcode # 837088001168
Brand Tech 21
Shipping Weight 0.9070kg
Shipping Width 0.108m
Shipping Height 0.064m
Shipping Length 0.146m
