EIKON J&H Wireless Headset system

The EKJ&H is a quartz-controlled UHF headset wireless microphone system that provides reliable, high-quality signal transmission.

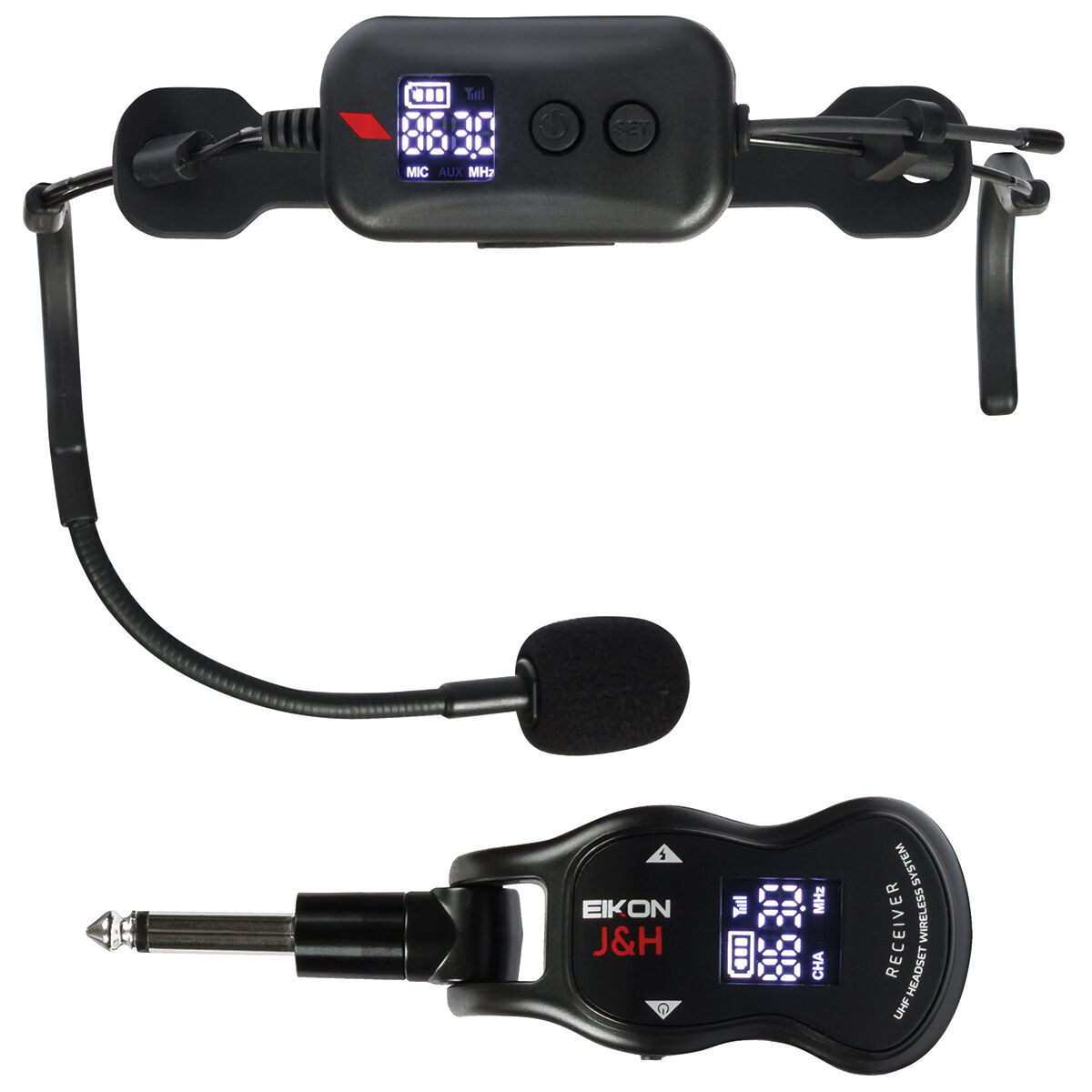

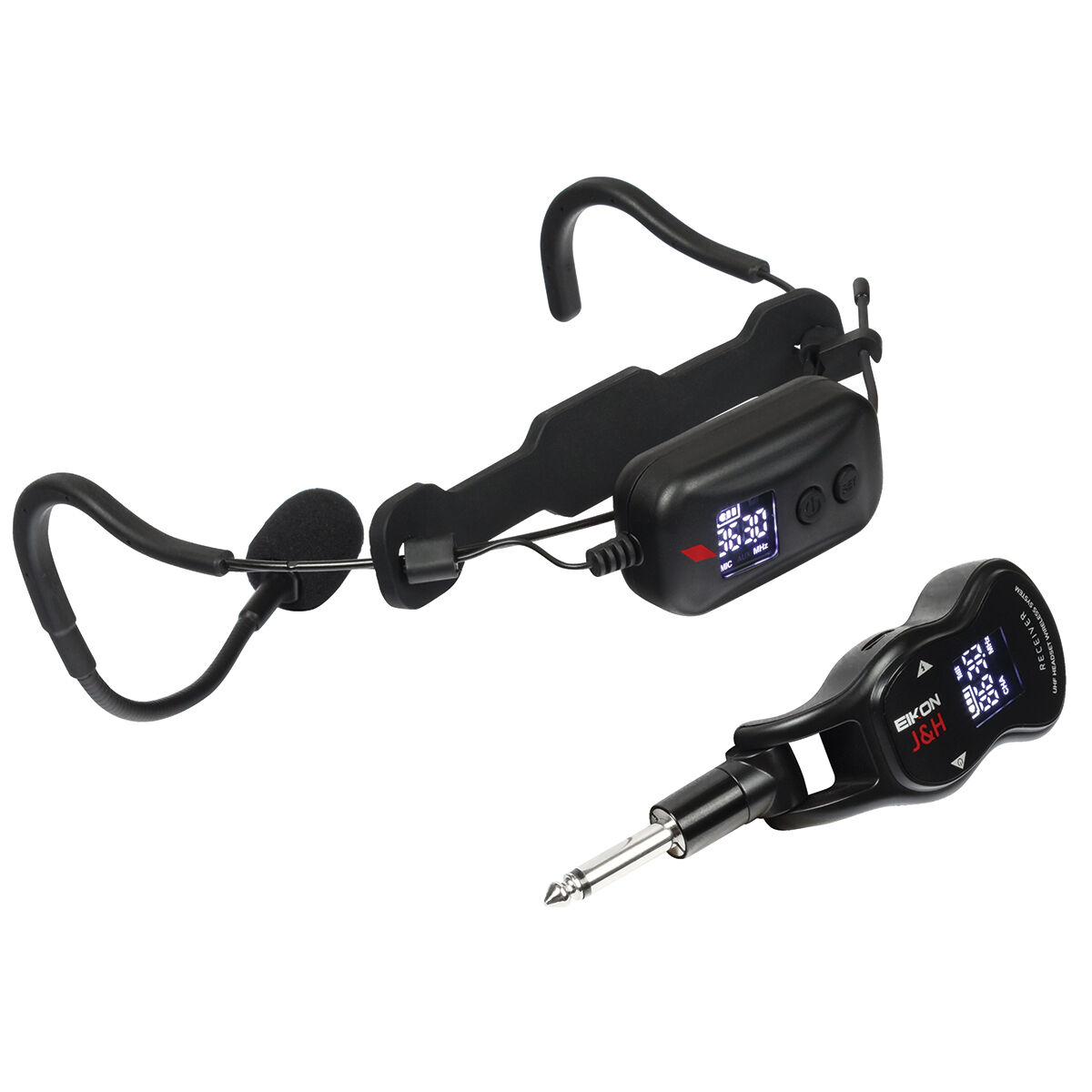

The EKJ&H comes with 3 units: the EKJ&H headset transmitter, the EKJ&H compact "connector-style" receiver, and a USB to USB-C charging cable.

50 frequency channels are available in 512 - 541 MHz, allowing the system to be used with other wireless equipment simultaneously.

  • UHF 512 - 541 MHz frequency band
  • Quartz locked modulation mode
  • Up to 20 meters range
  • Built in 3.7V/500mA lithium battery
  • 5V USB-C charging cable included
  • Up to 4 hours autonomy
  • Multiple systems usable in the same location

TECHNICAL SPECIFICATIONS

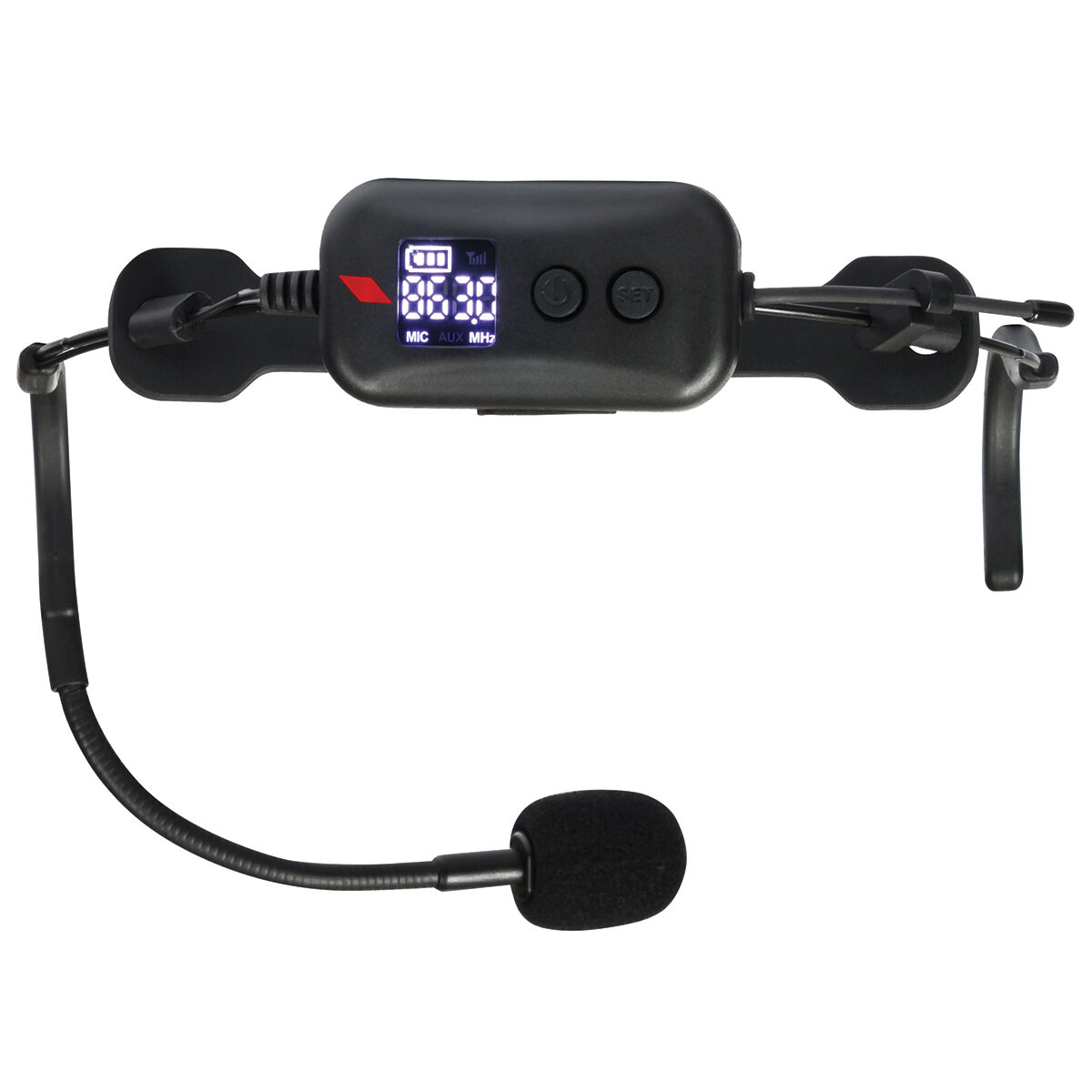

EKJ&H – UHF PLL Headset Transmitter

RF Channels

50 frequency presets

RF Frequency Band

UHF: 512 - 541 MHz

RF Frequency Stability

±0,002%

RF Oscillation Mode

Quartz locked

RF Modulation Type

Wideband FM Stereo

RF Output Power

10mW

Sub-harmonic

< 40 dB

Operating current

130 mA

Operating Time

3 to 5 hrs (depending on use conditions)

Operating Power Supply

3.7 V / 500 mA - built-in Lithium battery

Charging mode

USB charging 5V – type USB-C connector

Charging time

4 hours

Weight

0.50 Kg

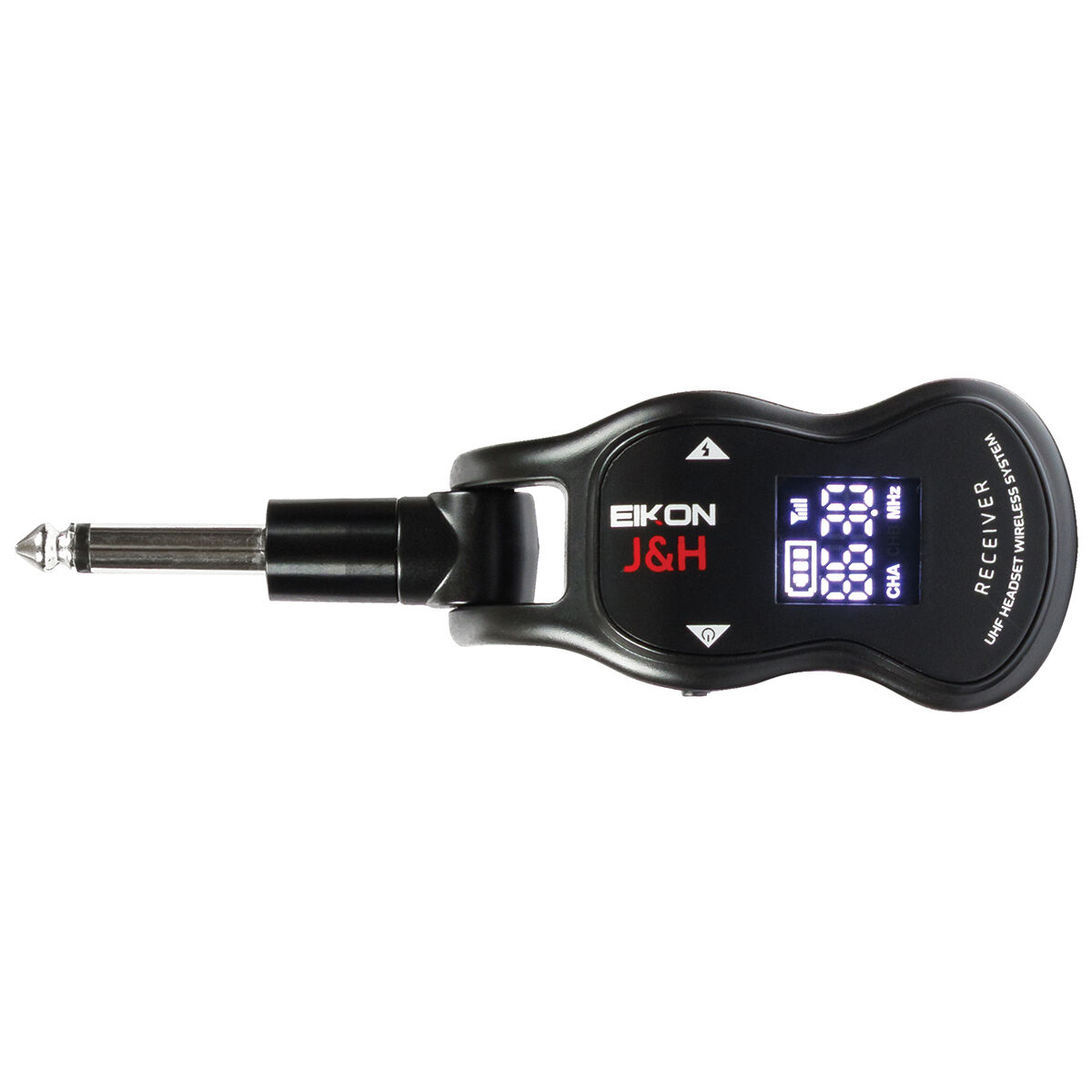

EKJ&H –UHF PLL Receiver

RF Channels

50 frequency presets

RF Frequency Band

UHF: 512 - 541 MHz

RF Frequency Stability

±0,005%

RF Oscillation Mode

Quartz locked

RF Modulation Type

Wideband FM Stereo

RF Receiving Sensitivity

< -95 dBm

RF Receiving range

20 meters depending on used band conditions

Audio dynamic range

106 dBm

THD Distortion

< 0.5%

S/N Ratio

> 90 dBA

Audio output connector

6.3 mm Mono Jack

Output Power Max (continuous)

400 mW

Operating current

80 mA

Operating Time

5 hours

Operating Power Supply

3.7 V / 500 mA - built-in Lithium battery

Charging mode

USB charging 5V – type USB mini connector

Charging time

3 hours

Weight

0.05 Kg

2 YEAR LIMITED WARRANTY + 2 YEAR EXTENDED WARRANTY (application required)

SKU EKJH
Barcode #
Brand Eikon
Shipping Weight 0.2470kg
Shipping Width 0.116m
Shipping Height 0.063m
Shipping Length 0.170m
