Portable bridge-mounted piezo, tailpiece-mounted output jack for banjo

Unlike other banjo pickups, BP-1 offers a unique way of sound capturing and delivers the natural tone from your banjo to your amp or mixing board.

There's a less chance of feedback than a banjo microphone pickup.

Detachable and one of the most portable pickups for banjo, BP-1 conveniently accepts a standard 1/4'' cable.

Features:

Install with no modification

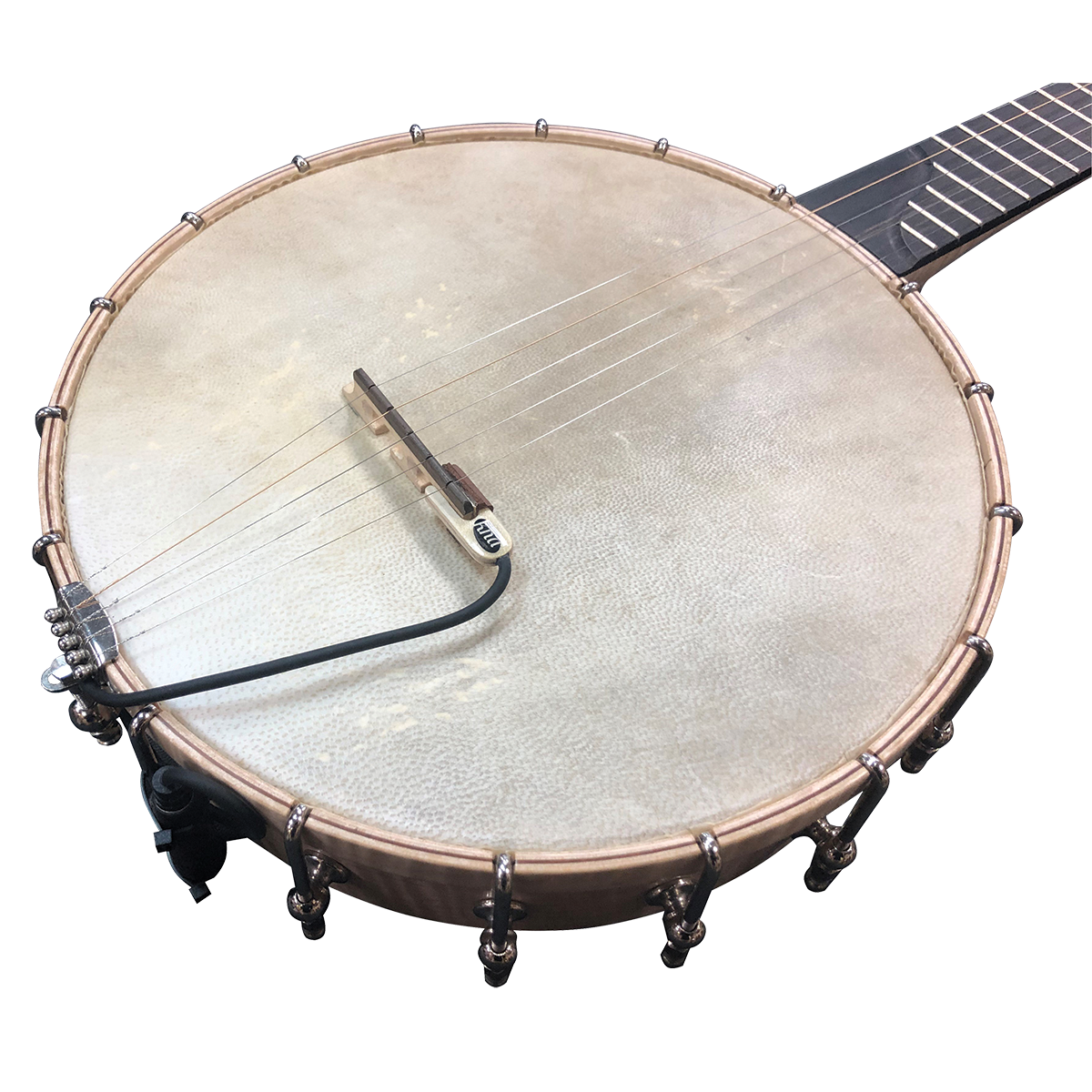

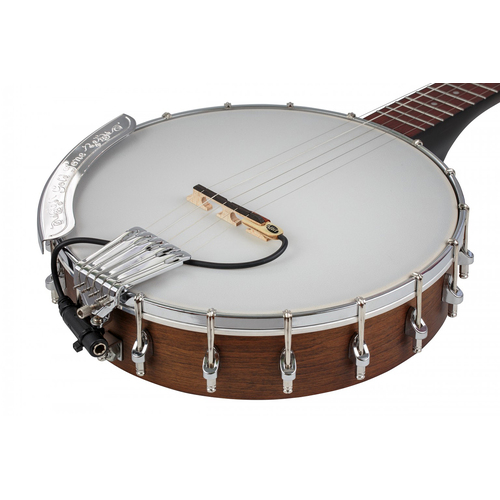

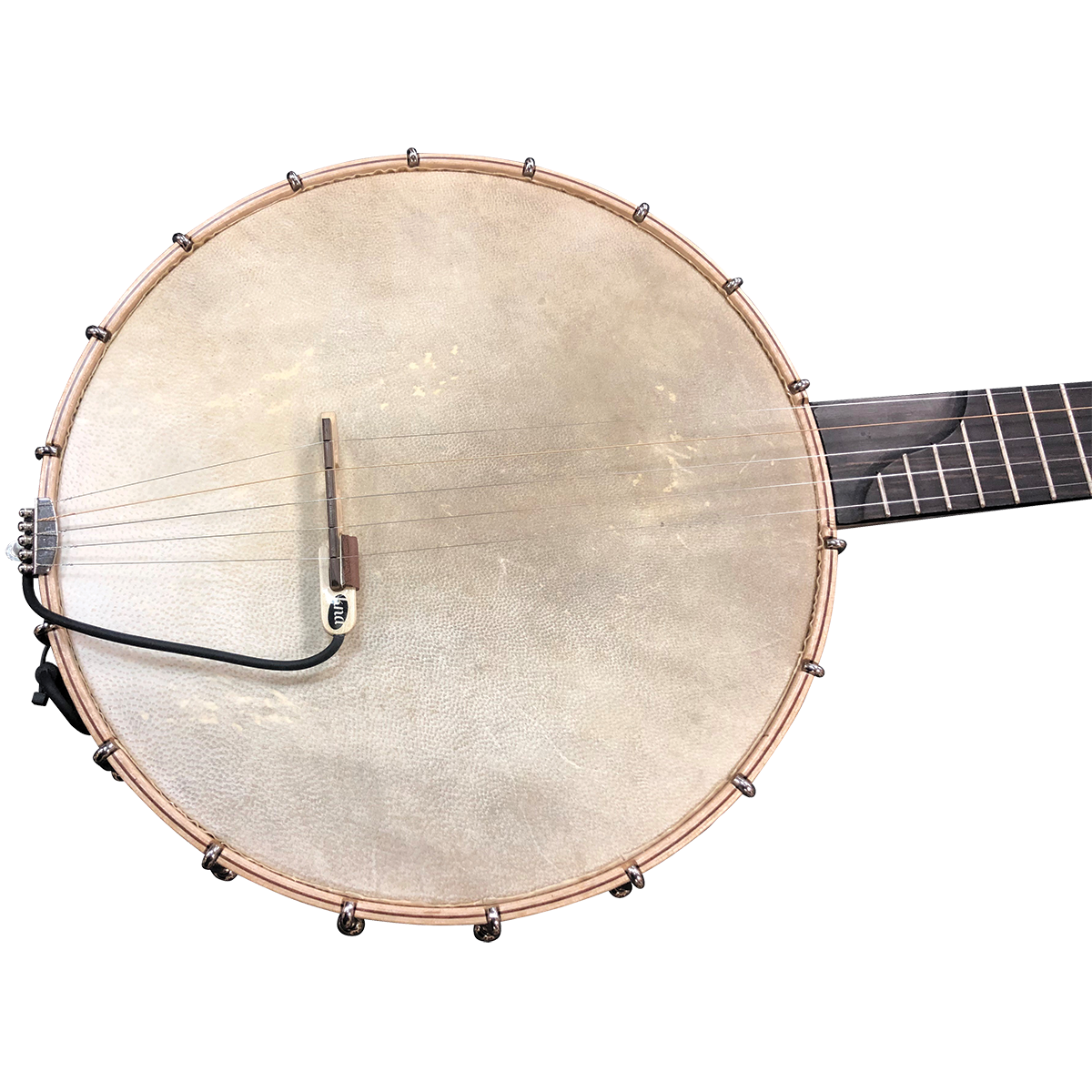

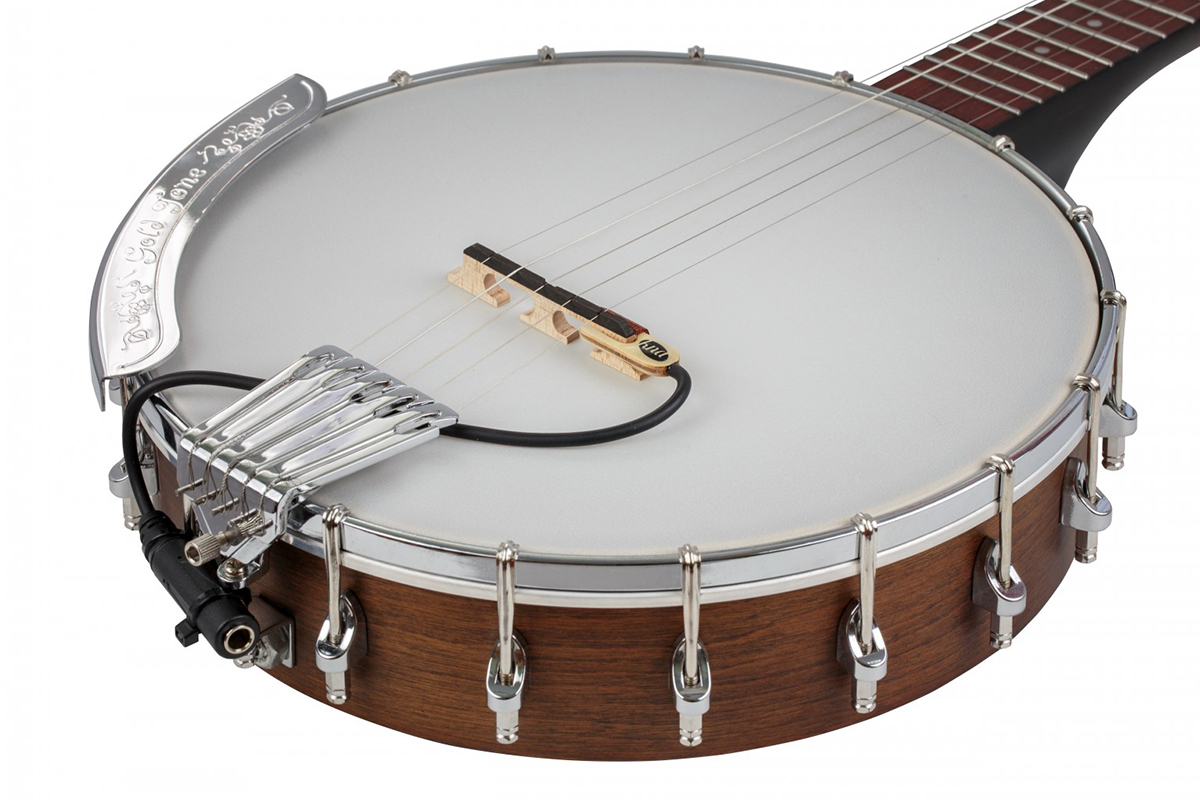

The sensor is easily installed on the side of the bridge and no modifications to the instrument are required.

Wooden sensor

The piezo sensor has a lightweight wooden casing to achieve maximum tonal sensitivity and transmission.

Natural sound

BP-1 has a passive design that reproduces the natural sound of the instrument with no need for a battery.

Complete installation set

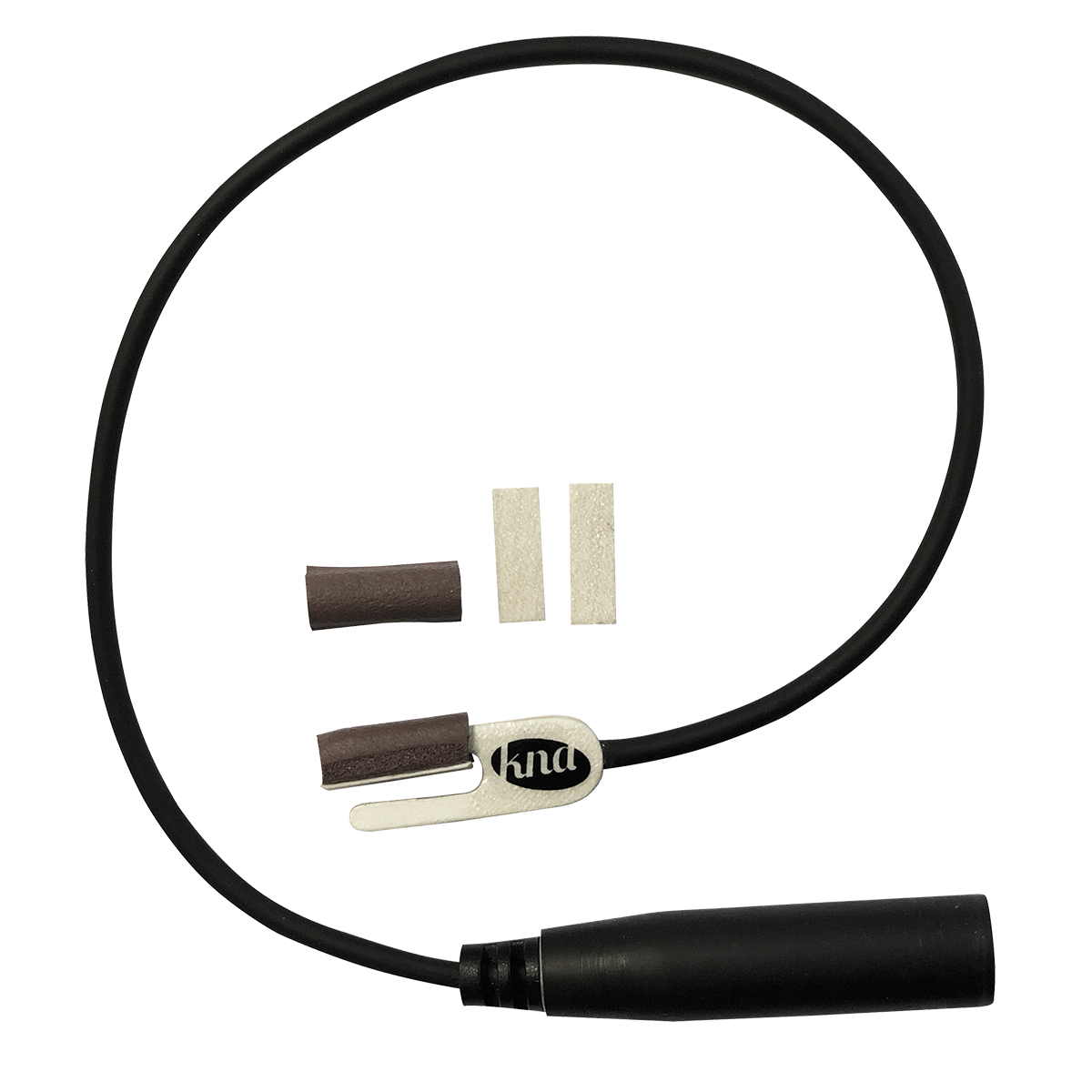

The pickup comes with additional shims and a microporous rubber slave for fitting the sensor in narrow bridges, and zip ties for attaching the jack housing to the bracket hooks.

DOWNLOAD INSTALLATION INSTRUCTIONS HERE

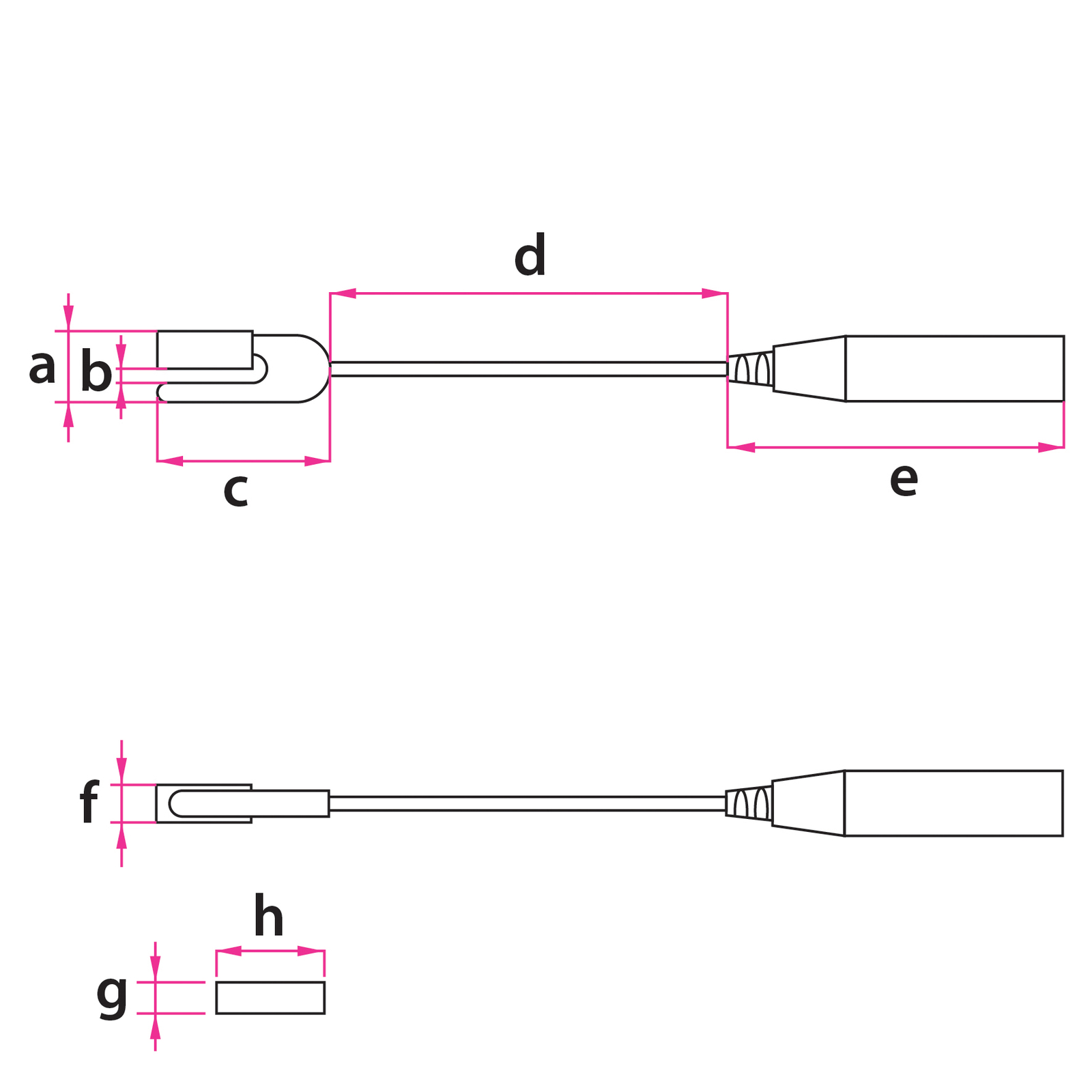

specifications
Overall weight 17g / 0.6 oz
Diameter of the piezo element 8mm / 0.32"
Thickness of the piezo element

1.8mm +/- 0.10mm

0.07" +/- 0.003"

Maximum Impedance 800 Ω
Lead cable from female jack to element 21.5cm / 8.46"



1 YEAR LIMITED WARRANTY

SKU KNABP1
Barcode # 0617353858822
Brand KNA Pickups
Shipping Weight 0.0350kg
Shipping Width 0.035m
Shipping Height 0.103m
Shipping Length 0.065m
