Portable bridge-mounted piezo for extended-range nylon-string guitar

NG-7S is the perfect solution for 7-string classical guitar players who want to capture the sound of their extended range instrument.

Live or in the studio, it's a classical guitar pickup that brings true nylon-string sound and does it without an installation that requires modification.

Features:

Install with no modification

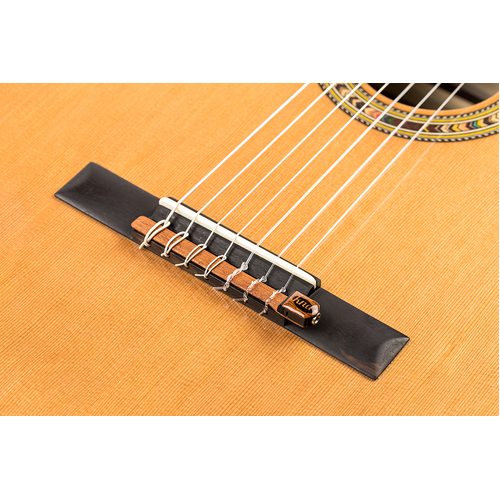

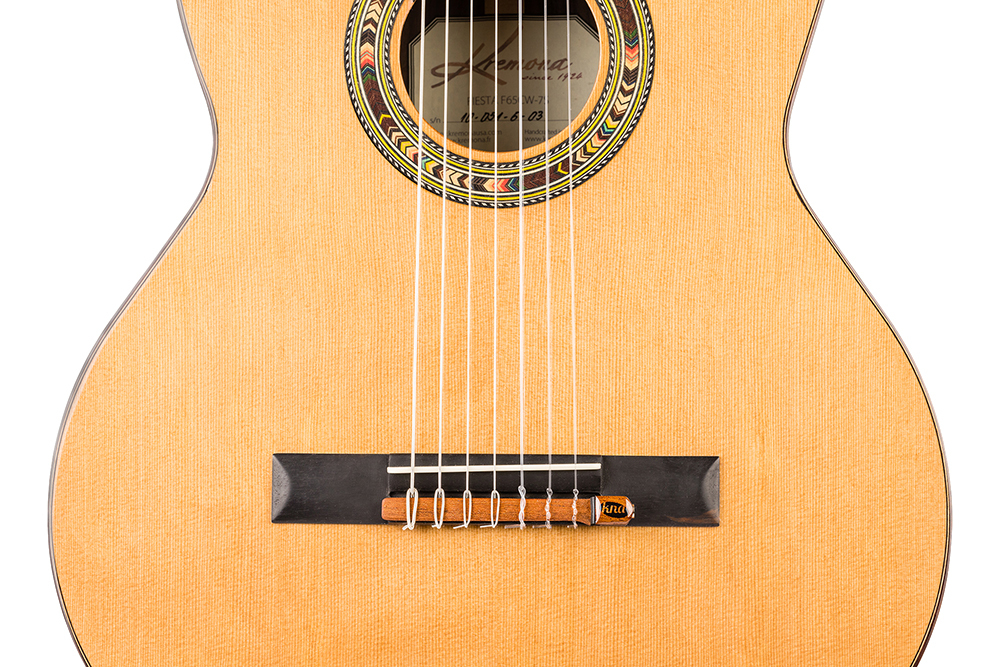

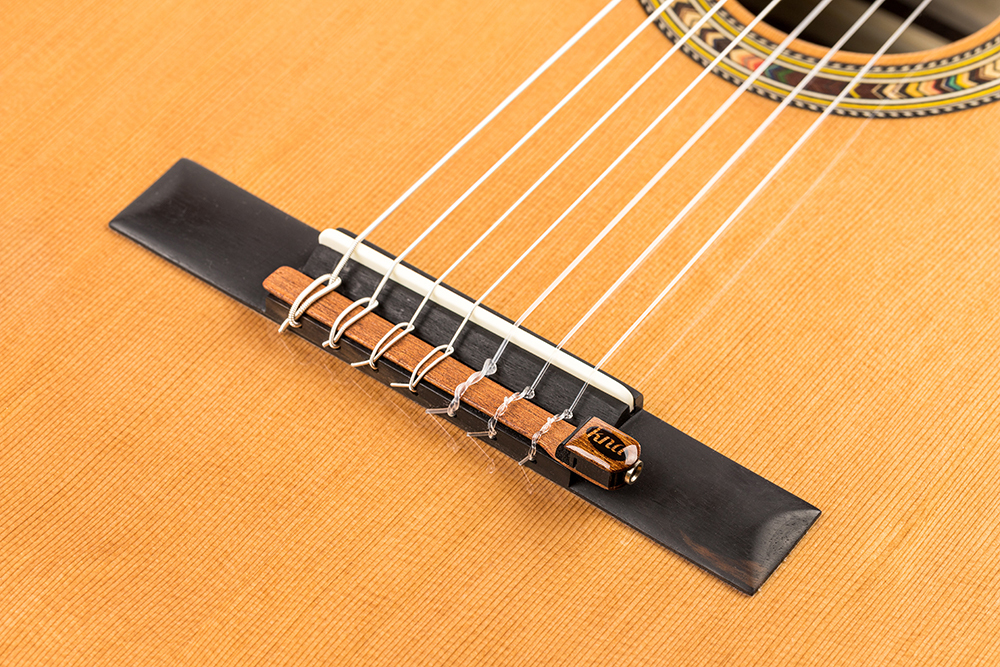

Unlike other guitar pickups, NG-7s installs safely and securely on the 7-string classical or flamenco guitar tie block utilising the tension of the strings.

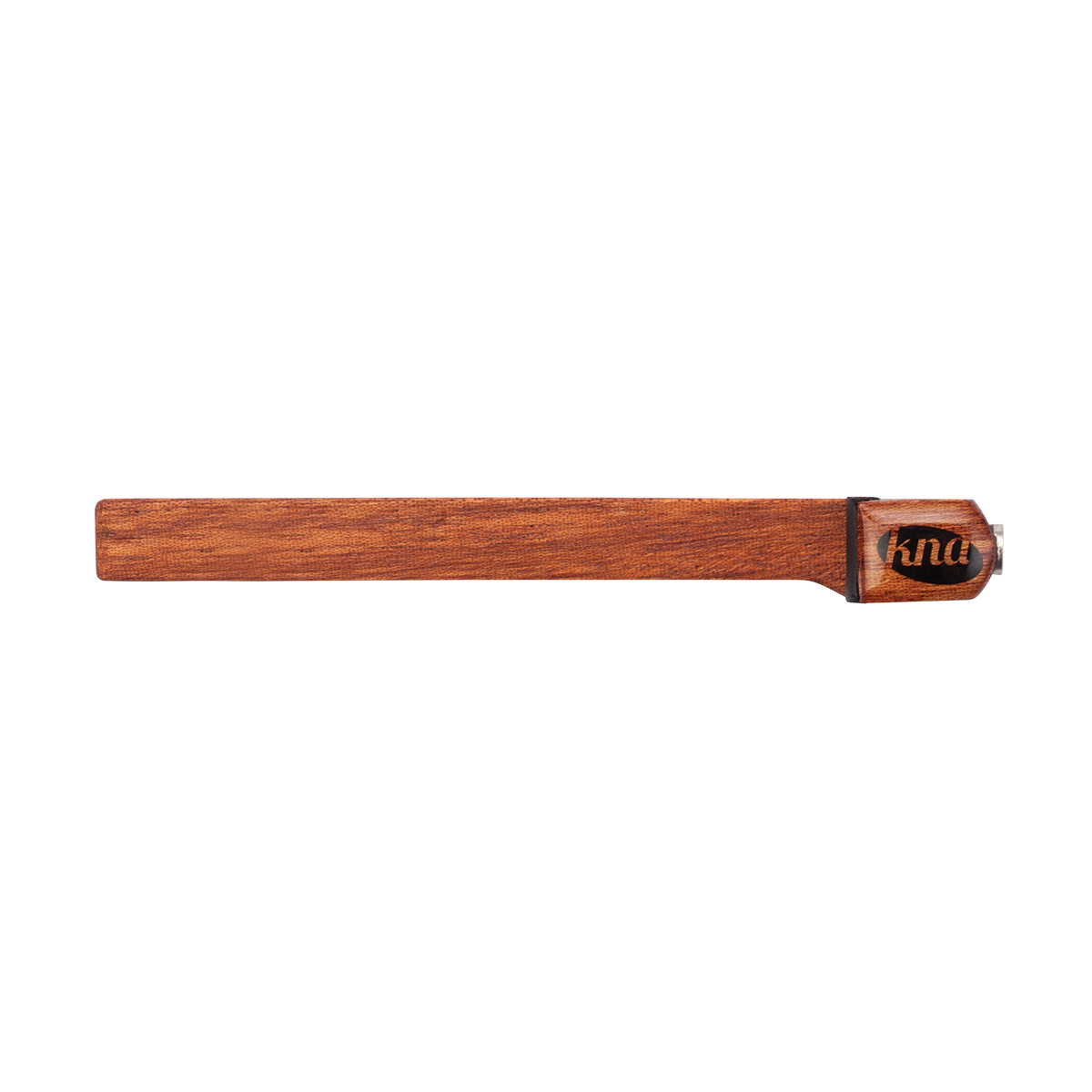

Wood case

The piezo element is encased in elegant and stylish mahogany. The lightweight assembly offers maximum tonal sensitivity.

Natural sound

NG-1 has a passive design that reproduces the natural sound of the instrument with no need for a battery.

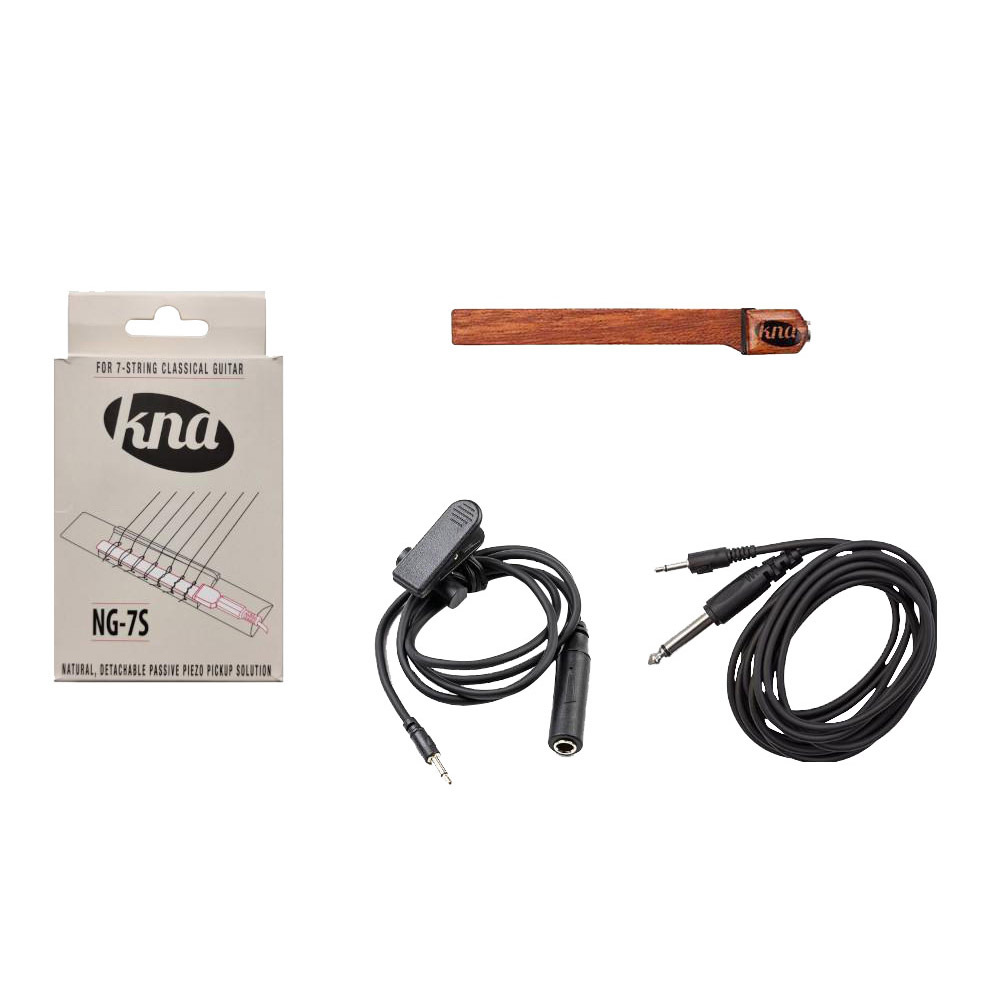

Complete set

Two cables are included — one 9-ft. 1/8" to 1/4" and one 3-ft. 1/8" to female 1/4" jumper with safety clip to connect with your instrument cable.

DOWNLOAD INSTALLATION INSTRUCTIONS HERE

 specifications
Weight 5g. / 0.176oz
Overall length 107mm / 4.21"
Height / jack housing 9mm / 0.35"
Active element measurements
Length 90mm / 3.54"
Width 9.6mm / 0.38"

Thickness

2mm ± 0.05mm

0.079" ± 0.002"

Wood Mahogany
Maximum Impedance 500 ‰ã_
Cables
Jumper cable with safety clip

1meter / 3'

Amp Cable

3meter / 9'

1 YEAR LIMITED WARRANTY

SKU KNANG7S
Barcode # 617353858617
Brand KNA Pickups
Shipping Weight 0.0800kg
Shipping Width 0.035m
Shipping Height 0.103m
Shipping Length 0.065m
