Portable bridge-mounted piezo with volume control for extended-range nylon-string guitar

With onboard volume control, NG-2 7S is a versatile choice for 7-string classical guitar players who need a piezo pickup to transfer the natural sound of their instrument.

Live or in the studio, it's a classical guitar pickup that brings true nylon-string sound and does it without an installation that requires modification.

Features:

Install with no modification

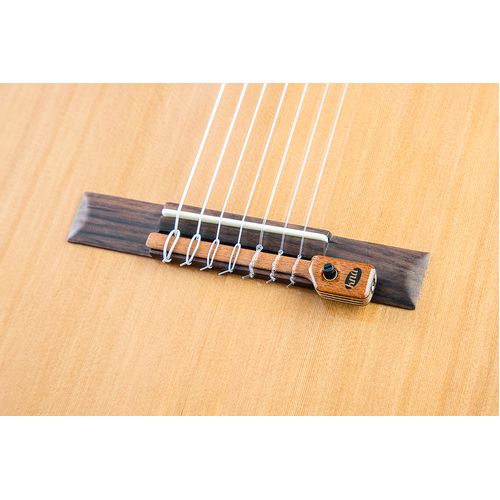

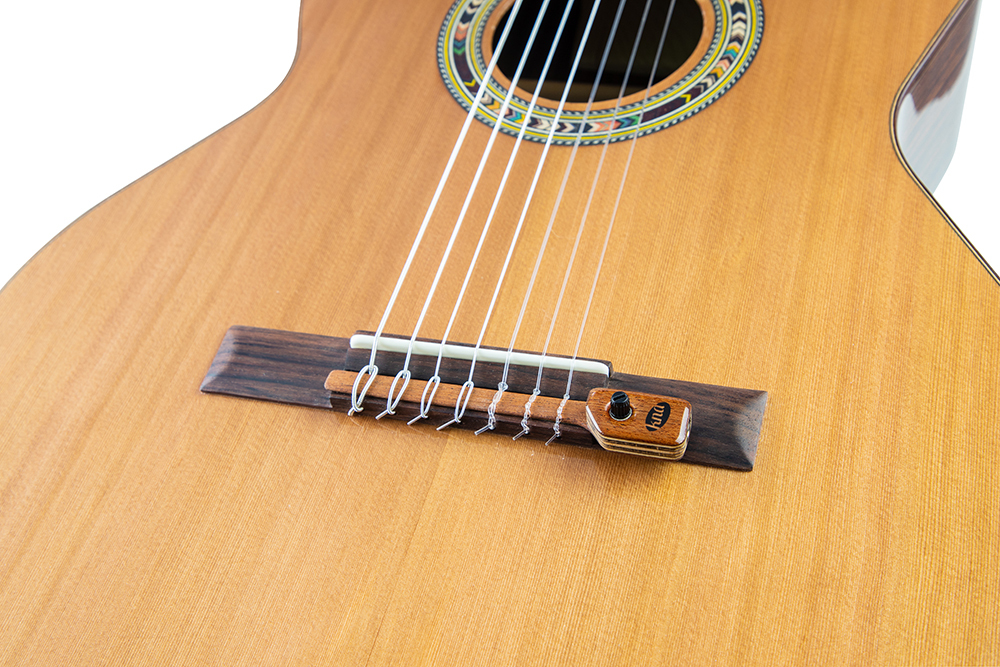

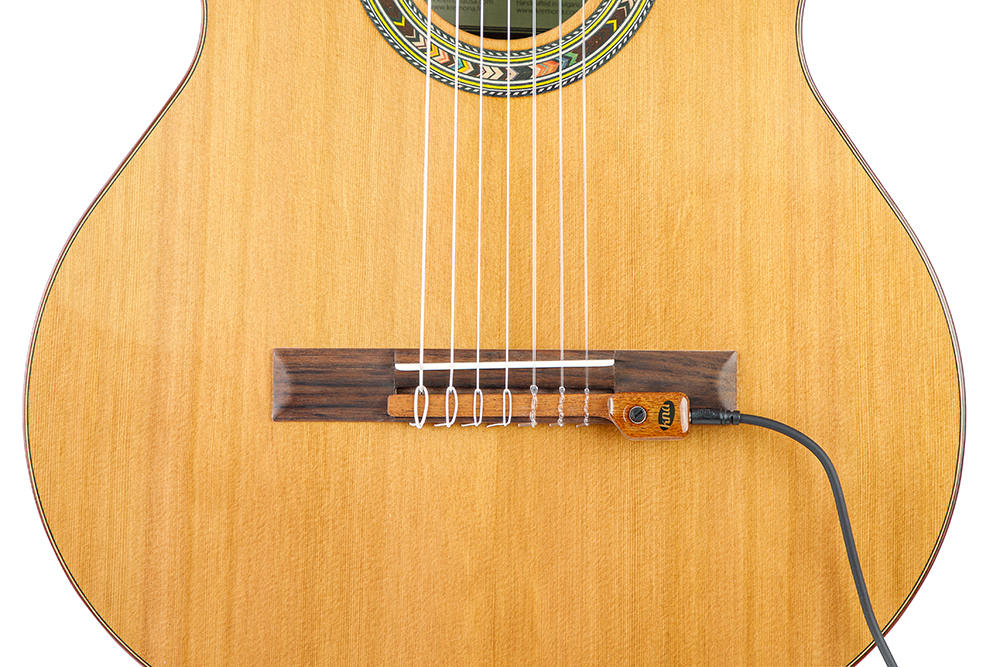

Unlike other guitar pickups, NG-2 7S installs safely and securely on the 7-string classical or flamenco guitar tie block utilizing the tension of the strings.

Onboard volume control

Players can control their output signal while onstage or in the studio, right from the pickup-mounted volume knob.

Wood case

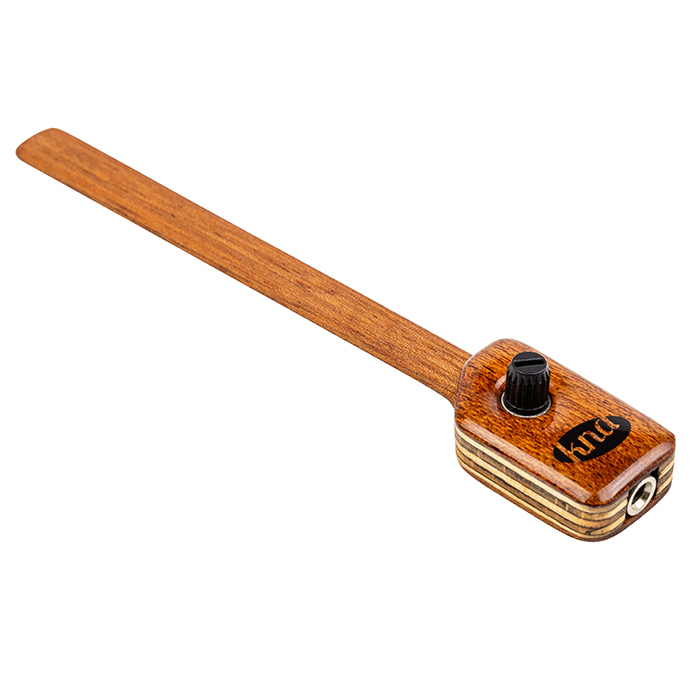

The piezo element is encased in elegant and stylish mahogany. The lightweight assembly offers maximum tonal sensitivity.

Natural sound

NG-2 7S has a passive design that reproduces the natural sound of the instrument with no need for a battery.

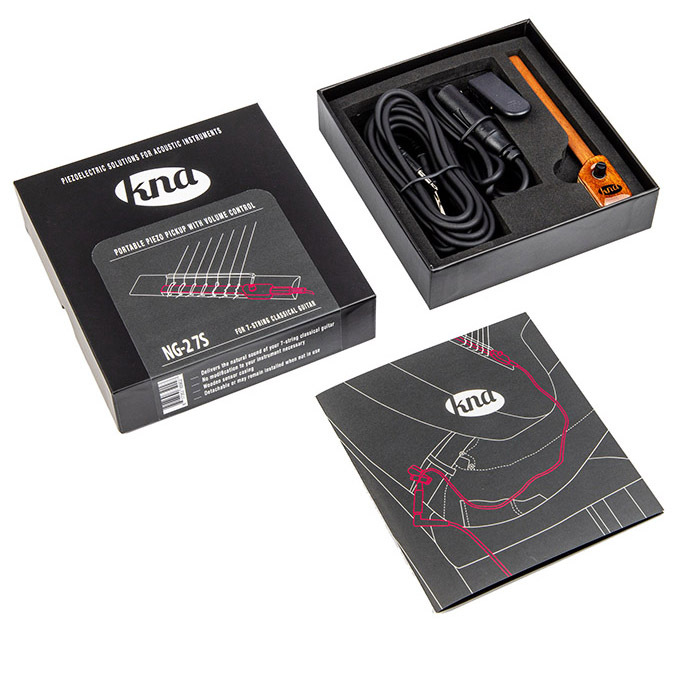

Complete set

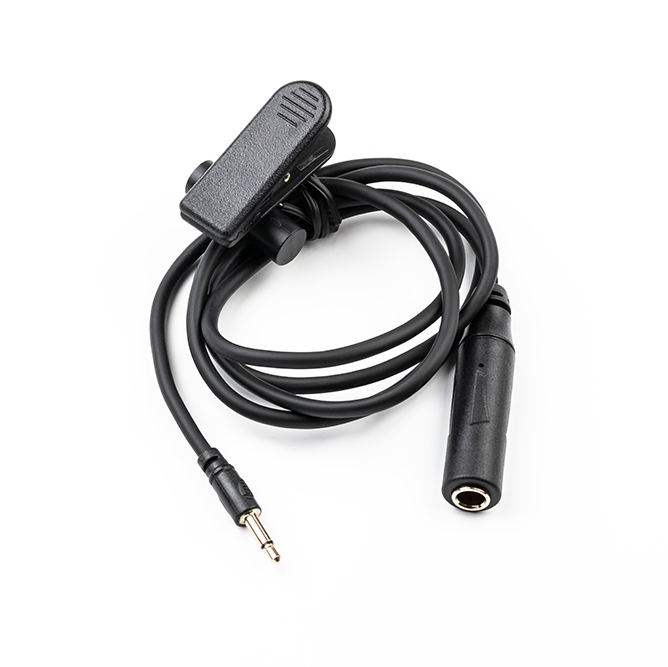

Two cables are included — one 9-ft. 1/8" to 1/4" and one 3-ft. 1/8" to female 1/4" jumper with safety clip to connect with your instrument cable.

DOWNLOAD INSTALLATION INSTRUCTIONS HERE

 specifications
Weight 5g. / 0.176oz
Overall length 124 mm / 4.88"
Height / jack housing 16.3 mm / 0.64"
Active element measurements
Length 90mm / 3.54"
Width 9.6mm / 0.38"

Thickness

2mm ± 0.05mm

0.079" ± 0.002"

Wood Mahogany
Maximum Impedance 500 ‰ã_
Cables
Jumper cable with safety clip

1meter / 3'

Amp Cable

3meter / 9'

1 YEAR LIMITED WARRANTY

SKU KNANG27S
Barcode #
Brand KNA Pickups
Shipping Weight 0.0800kg
Shipping Width 0.035m
Shipping Height 0.103m
Shipping Length 0.065m
